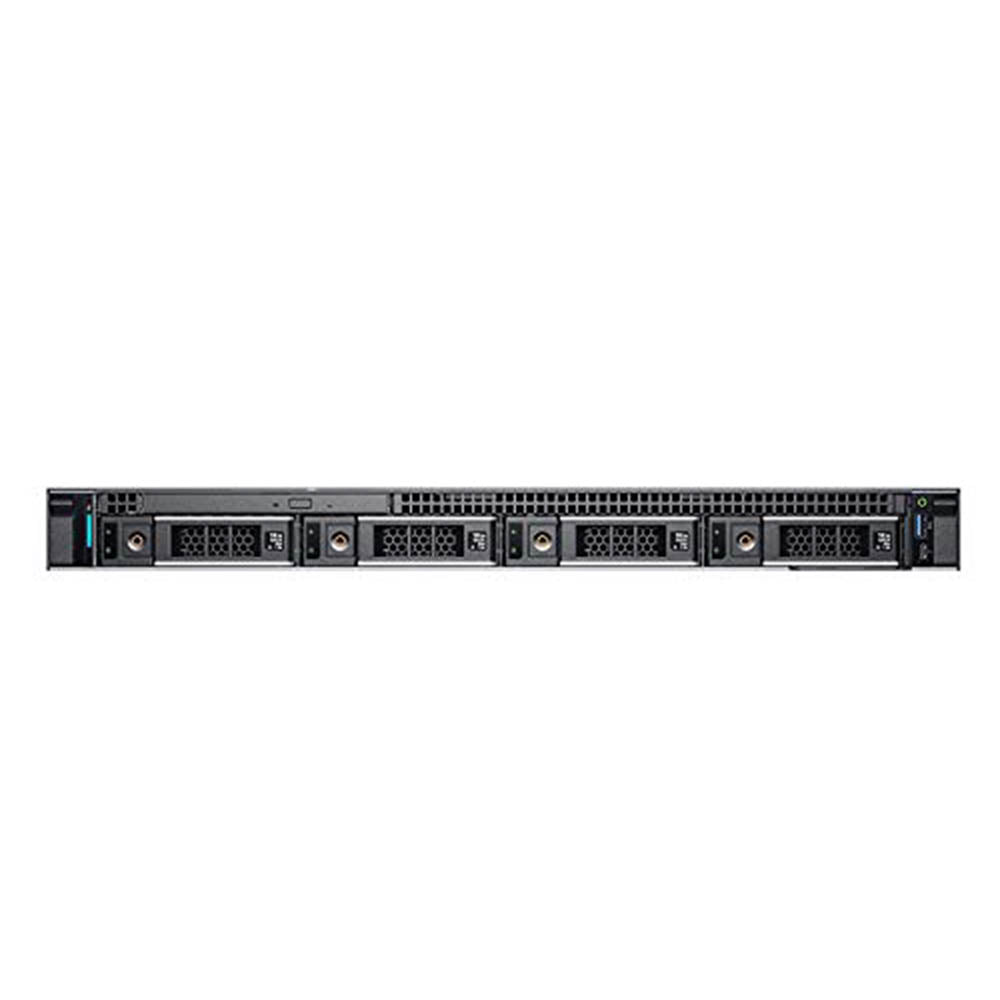

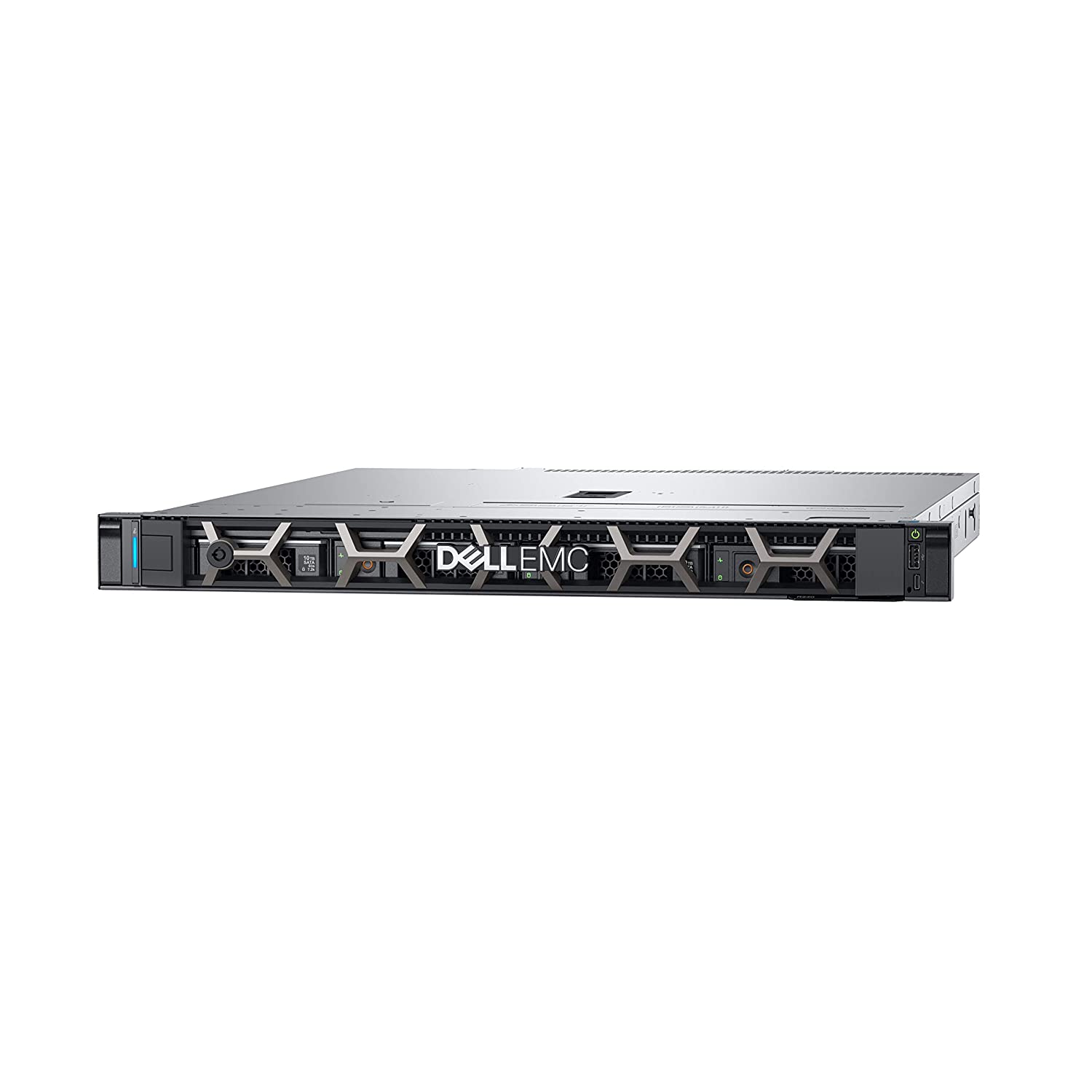

Dell PowerEdge R240 Rack Server E2224G 8GB RAM 1TB HDD
Dell PowerEdge R240 Rack Server E2224G 8GB RAM 1TB HDD

    Dell PowerEdge R240 Rack Server E2224G 8GB RAM 1TB HDD

    GH₵26,150
    • Brand: Dell
    • Barcode:
    DESCRIPTION

    Processor

    Up to one Intel® Xeon® E-2200 product family processor with up to 8 cores per processor

    Operating System

    Canonical® Ubuntu® Server LTS
    Citrix® Hypervisor
    Microsoft® Windows Server® LTSC with Hyper-V (2016 and 2019)
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware® ESXi®

    Memoryi

    DIMM Speed
    Up to 2666MT/s

    Memory Type
    UDIMMs

    Memory Module Slots
    4 DDR4 DIMM slots
    Supports registered ECC DDR4 DIMMs only

    Maximum RAM
    UDIMM 64GB

    Storage

    Front Bays
    Up to 4 x 3.5 hot-plug SAS/ SATA/SSD
    Up to 4 x 3.5 cabled SAS/ SATA/SSD
    Up to 2 x 3.5 cabled SAS/SATA/ SSD
    Max 56TB for 4 HDD configuration

    Storage Controllers

    Internal Controllers
    PERC H330, H730p, HBA330

    External Controllers
    12 Gbps SAS HBA

    Software RAID
    S140

    Internal Boot
    Boot Optimized Storage Subsystem (BOSS):
    2 x M.2 240GB (RAID 1 or No RAID)
    1 x M.2 240GB (No RAID only)

    Internal Dual SD Module (IDSDM)i:
    2x microSD (16GB, 32GB or 64GB)
    1x microSD (16GB, 32GB or 64GB)

    Security

    Cryptographically signed firmware
    Silicon Root of Trust
    Secure Boot
    System Lockdown (requires OpenManage Enterprise)
    Secure Erase
    TPM 1.2/2.0, TCM 2.0 optional

    Management

    Embedded / At-the-Server
    iDRAC9
    iDRAC RESTful API with Redfish
    iDRAC Direct

    Consoles
    OpenManage Enterprise
    OpenManage Power Center

    Mobility
    OpenManage Mobile

    Tools
    Dell EMC RACADM CLI
    Dell EMC Repository Manager
    Dell EMC System Update
    Dell EMC Server Update Utility
    Dell EMC Update Catalogs
    iDRAC Service Module
    IPMI Tool
    OpenManage Server Administrator
    OpenManage Storage Services

    OpenManage Integrations
    BMC Truesight
    Microsoft® System Center
    RedHat® Ansible® Modules
    VMware® vCenter

    OpenManage Connections
    IBM Tivoli® Netcool/OMNIbus
    IBM Tivoli® Network Manager IP Edition
    Micro Focus® Operations Manager I
    Nagios® Core
    Nagios® XI

    Power Supplies

    250W Bronze
    450W Platinumi

    Ports

    Network Options
    2 x 1GbE LOM

    Front Ports
    1 x Dedicated iDRAC direct micro-USB
    1 x USB 2.0

    Rear Ports
    1 x Serial
    2 x USB 3.0
    1 x VGA

    Internal Ports
    1 x USB 3.0

    Slots

    PCle
    2 x PCIe Gen3 slots

    Bezel

    Optional security bezel

    Form Factor

    1U Rack Server

    Dimensions & Weight

    Height
    42.8mm (17.1")

    Width
    434.0mm (17.1")

    Depth
    595.6mm (23.5") (3.5” HHD config)

    Weight
    12.2kg (29.9lbs.)
    Dimensions do not include bezel

    Rack Support

    ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
